Draft shield and power cord with AC adapter and plug.
Key Features
Achieve consistent results with built-in automatic calibration
Manage weighing on the intuitive 7” glass touchscreen display
Two touchless sensors—set to activate print, zero, tare, or calibrate
Motorized leveling system ensures a smooth and straightforward setup
Detachable terminal adds flexibility
RS-232, USB, and Ethernet connections provide seamless data transfer
Supports HID connection to PC or keyboard without drivers
Save up to 3000 application sample libraries to easily manage multiple sample profiles
Power saving features include auto dim, auto standby, and sleep mode
Full metal housing offers durability
Anti-static, anti-pinch draft shield for safe sample handling
Built-in ionizer removes the static charge from the sample surface
Sample spotlight for enhanced visibility
620 g capacity with 1 mg readability
2 year warranty
More About this Item

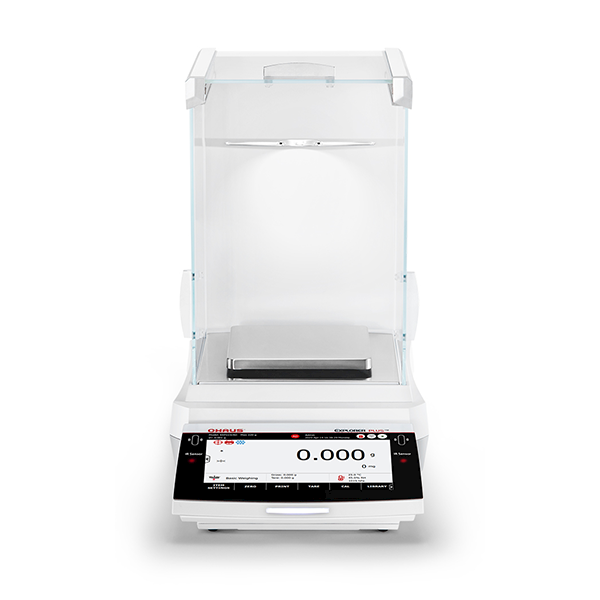

Enhance your workflow with the Explorer Plus™ EXP precision toploading balances featuring outstanding weighing performance, intuitive touchscreen display, and advanced communication capabilities. Automatic, user-triggered, and span calibration options ensure precise measurements; the built-in automatic calibration performs self-calibration using an internal mass. A built-in motorized leveling system with a digital bubble automatically levels the balance with the push of a button for a smooth setup.
Easily manage weighing operations on the 7” touchscreen display. An easy-to-clean, chemical-resistant glass panel displays vibrant colors for easy viewing. Detachable terminal offers flexibility—ideal for small labs or placing outside fume hoods. Set terminal status light to indicate overload or underload. Touchless sensors located on the terminal activate often used functions such as print, zero, tare, or calibrate, simply wave your hand over the sensors to activate.
Built-in RS-232, USB (A and C), and Ethernet connections provide seamless data transfer; order an optional dongle for Bluetooth® and Wi-Fi capabilities. Save and recall up to 3000 sample library records to simplify your weighing operation. Each record may contain minimum weight, sample name, sample ID, batch ID, project name, and more. Order an optional fingerprint scanner for added security and a convenient and secure way to log in.
Removable draft shield offers hassle-free cleaning and long-term care. Anti-pinch automatic draft shield door protects user and sample. Anti-static coating and built-in ionizer remove static charge for a stable measuring environment. A sample spotlight provides clear visibility for easy sample handling. Select from 15 application modes: Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control.
OutputUSB Host (Type A) x2; USB Device (Type B) x1; USB Device (Type C) x1; Ethernet x1; RJ11 for fingerprint accessory x 1; RS-232 x1; Optional Bluetooth/WiFi dongle (through USB Host Type A) x 1
USB InterfaceYes
RS-232 InterfaceYes
Stability IndicatorYes
Stabilization Time (Sec)1.5
Power (VAC)100 to 250
Power (Hz)50/60
Height (in)14 5/8
Width (in)16 1/8
Depth (in)15 1/2
Pan Length (in)5 1/8
Pan Width (in)5 1/8
Draft Shield Height (in)10 3/8
Draft Shield Width (in)7 1/8
Display Height (in)2 5/8
Display Width (in)4 3/4
Draft Shield Depth (in)15 1/2
Chamber Height (in)10 3/8
Chamber Width (in)7 1/8
Chamber Depth (in)6 3/4
Min Temperature (° C)10
Max Temperature (° C)30
DescriptionExplorer Plus™ EXP Series Precision Top Loading Balance, 620g x 1mg, Auto-Draftshield, Touch Screen, 15 Application Modes
