Cole-Parmer VP-200 Air Cadet Vacuum/Pressure Pump Station, Diaphragm, 0.5 cfm; 230 VAC

Cole-Parmer | Item: 0753285

Unique cavity configuration minimizes dead space and air entrapment

  • No maintenance needed—motors are brushless with sealed ball bearings ... READ MORE

₹125,000.00INR / Each
Add To Cart
+ADD TO LIST

PRODUCT OPTIONS

See All 5 Items in this Product Family

₹125,000.00INR / Each
Add To Cart

Buy It Together

Current Item

Cole-Parmer VP-200 Air Cadet Vacuum/Pressure Pump Station, Diaphragm, 0.5 cfm; 230 VAC
Cole-Parmer VP-200 Air Cadet Vacuum/Pressure Pump Station, Diaphragm, 0.5 cfm; 230 VAC
0753285

₹125,000.00INR / Each
+ +
Cole-Parmer PTFE Thread tape (Plumber's), 1/2"w x 43ft
Cole-Parmer PTFE Thread tape (Plumber's), 1/2"w x 43ft
0827033

₹1,400.00INR / Each
+ +
Cole-Parmer PVC Lab Tubing, 3/32" ID x 5/32" OD; 50 Ft
Cole-Parmer PVC Lab Tubing, 3/32" ID x 5/32" OD; 50 Ft
5012117

₹6,200.00INR / Pkg of 1
+ + + + + =
Total Price 2767500.00 ADD 10 ITEMS TO CART

Customers Also Bought

Product Description

Includes

Thread tape of PTFE resin, two polyethylene (PE) 3/8" NPT(M) x 3/8" hose barb adapters, one PE 1/4" NPT(M) x 3/8" hose barb adapter (for auxiliary port), and a 6-ft (1.8-m), three-wire cord.

Key Features

  • No maintenance needed—motors are brushless with sealed ball bearings
  • Worry-free pumping with reduced stress, wear, and heat buildup
  • Free Air Capacity - 0.5 cfm
  • Power - 230 VAC
  • 3 year warranty

More About this Item

Single-head vacuum pumps are economically priced and can handle many tough vacuum/pressure applications. Pumps feature an all-plastic, convoluted diaphragm design constructed with a Noryl™ pump head, FKM diaphragm, PTFE valves, and polyethylene (PE) adapters.

NOTE: Do not use metal fittings with any of these pumps.

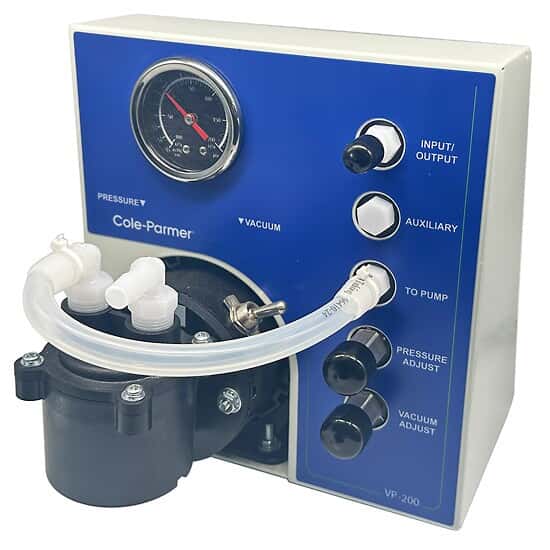

Station features a built-in bronze and brass vacuum/pressure gauge and stainless steel (SS) regulator. Use the auxiliary port to evacuate or pressurize two systems simultaneously. Each station includes a 9" (22.8 cm) piece of vinyl tubing to connect pump to the regulator.

Please Note: Effective April 2023, the Air Cadet Vacuum/Pressure Pump Station has now been rebranded Cole-Parmer under model number VP-200. All the same great features and specifications, just with a new and improved look.

Conformite Europeenne3 Year Warranty
Specifications
  • Wetted PartsNoryl™, FKM, PTFE, 304 Stainless Steel, Bronze/Brass, Polyethylene
  • Free-Air Capacity (CFM)0.52
  • Free-Air Capacity (LPM)14.7
  • Free-Air Capacity (LPH)883.5
  • Max Flow Rate (CFM)0.4
  • Max Flow Rate (Liters/min)11.3
  • Max Pressure (PSI)18
  • Max Pressure (bar)1.24
  • Max Vacuum (in Hg)20
  • Max Vacuum (mbar)677.3
  • Max Vacuum (mm Hg)508
  • Max Vacuum (torr)508
  • Port Size3/8" NPT
  • Max Temperature (° F)104
  • Max Temperature (° C)40
  • Duty CycleContinuous
  • Power (VAC)230
  • Power (amps)0.75
  • Power (Hz)50
  • Motor TypeTEFC
  • Shipping Weight (kg)4
  • Shipping Weight (lbs)8.8
  • Height (in)8.7
  • Width (in)8
  • Length (in)9.6
  • Height (cm)22.19
  • Width (cm)20.32
  • Length (cm)24.36
  • Height (mm)222.3
  • Width (mm)203.2
  • Length (mm)243.6
  • Motor hp1/50 hp at 1300 rpm
  • DescriptionVacuum/Pressure Pump Station, Diaphragm, 0.5 cfm; 230 VAC
  • Warranty3 Years
