Dual functionality: digital control and manual operation
Flow rates from 0.004 mL/min to 3.5 L/min
2200:1 speed control range from 0.1 to 220 rpm in precise 0.1 rpm increments
Auto-restart, leak detection, and configurable logic inputs
MemoDose mode allows repeat-dosing of a precise volume of fluid
Can operate MemoDose remotely using foot/hand-switch or logic input
Full calibration with flow rate and speed display options
Secure 3-level PIN lock for enhanced access control
IP31 (NEMA 2) cased for protection
Includes a power cord with EU plug
3 year warranty
More About this Item

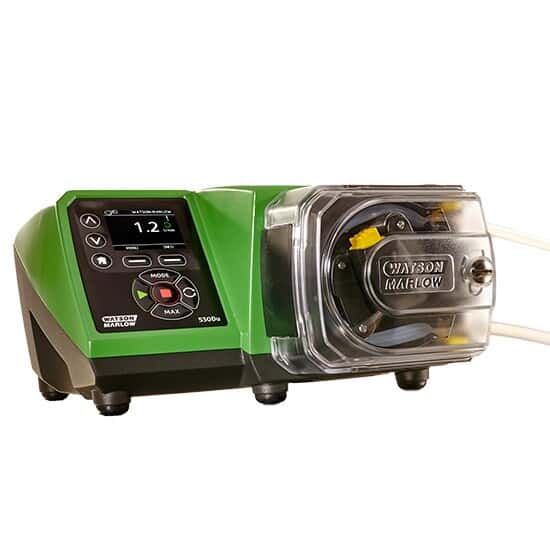

The 530Du pump system offers advanced digital and manual control options, ensuring reliable and flexible fluid management. Designed for precision and efficiency, it’s perfect for applications requiring seamless operation and robust security. The 520R2 pumphead features a twin spring roller for use with 2.4 mm wall thickness tubing – tube materials commonly used include Pumpsil® and Bioprene®.
Remote control options include a configurable start/stop, leak detector, and pressure switch input via contact closure, 5 V TTL, or 24 V industrial logic. Direction change and auto/manual toggle input can be made via contact closure, 5 V TTL, or 24 V industrial logic Analog speed control options include fully configurable inputs (0-10 V or 4-20 mA), outputs (0-10 V or 4-20 mA), keypad/analog input scaling, and tacho frequency output (0-991 Hz).
Warning: This product is not approved or intended for, and should not be used for, medical, clinical, surgical or other patient-oriented applications.
Specifications
Series500
Control TypeManual, analog, RS-232
Min RPM0.1
Max RPM220
Number of Channels1
Max Flow Rate (mL/min)3500
Min Flow Rate (mL/min)0.04
Drive530Du
Pump Head520R2
Tubing sizes accepted1.6, 3.2, 4.8, 6.4, 8, 9.6 mm bore with 2.4 mm wall
Included AccessoriesDrive with US plug and pump head
Drive IP ratingIP 31
Number of Rollers2
Power (VAC)115 / 230
Power (Hz)50/60
Width (in)10.87
Height (in)6.22
Length (in)12.63
Width (cm)27.6
Height (cm)15.8
Length (cm)32.1
Housing MaterialAluminum
Remote Inputs4 to 20 mA, 0 to 10 V, RS-232
Reversible MotorYes
Digital DispensingYes
Rotor MaterialPPS and 316 stainless steel
DescriptionIP31 Pump System, RS-232 Digital Control, EU Plug, for 2.4 mm Wall Thickness Tubing
