User-friendly menu in your choice of seven languages
Backlit, color displaywith prompts in user-selectable languages
Two 2-to-20 mA current outputs per sensor
Optional digital communication protocols available
Call to configure multiple parameters for up to four channels
2 year warranty
More About this Item

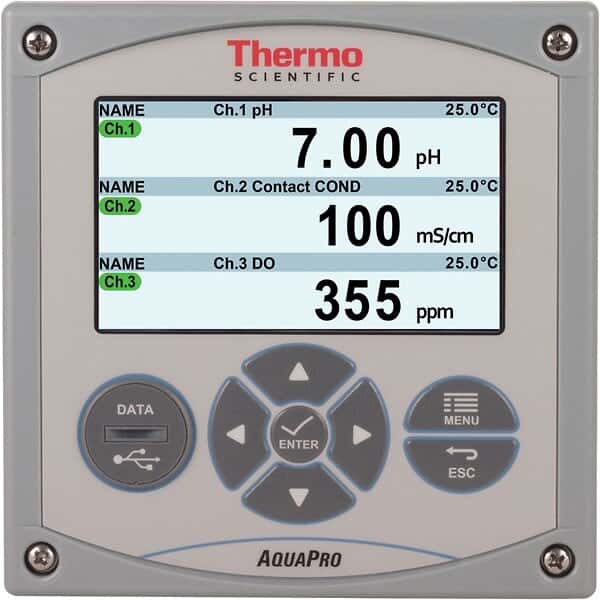

The AquaPro is an intelligent multi-input process analyzer designed for a wide range of in-line applications. Analyzer measures key parameters simultaneously on a large 4 ¼” color display. Color error-warning flags are visible in any lighting. Straightforward and intuitive menu operation offers plain language prompts in seven user-selectable languages--English, Spanish, French, German, Italian, Portuguese, and Chinese. Analyzer comes equipped with pH, ORP, conductivity, toroidal conductivity, or dissolved oxygen measurements modules. For temperature-compensated measurements, use with 1000 Pt RTD sensors (not included; see pages 0000-0000). For added versatility, call our Application Specialists to purchase additional modules for multi-parameter measurements on up to four channels. Durable UV-resistant case with NEMA 4X and IP66 waterproof ratings can be pipe, panel or wall mounted. Analyzer also features a built-in USB data port that makes it easy to download up to 1000 data points, or use it to upload new software in the workplace. Easy interface to PLC, SCADA, and other PC-based control systems. Convenient add-on communication cards (sold separately below) help you adhere to current industry data communication protocols.
This unit set up to run conductivity, call application support to purchase additional modules to run additional parameters.
Specifications
Control TypeIntegral PID control
Display TypeLCD
Housing MaterialNEMA 4X
Min mV (mV)-2000
Max mV (mV)2000
mV Resolution1mV
Min Temperature (° C)-5
Max Temperature (° C)200
Min Temperature (° F)23
Max Temperature (° F)392
Temperature Resolution0.1°
Temperature CompensationAutomatic
Password ProtectionYes
Output Alarm3 SPDT (250vAC, 5A)
Output Current4-20mA (x2)
Output Relay3 SPDT relays (optional)
DescriptionAquaPro Multiparameter Analyzer/ with Conductivity Module
