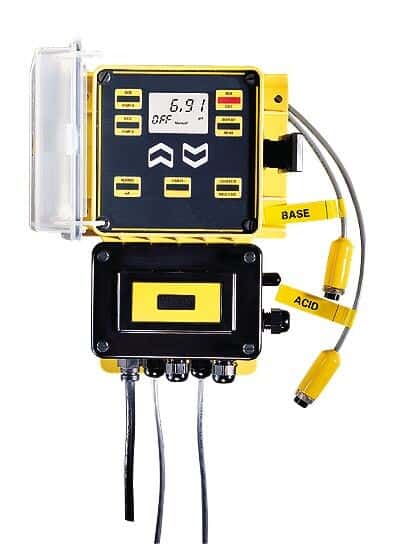

LMI DP5000-1A-0 DP5000 Wall-Mount On/Off (Limit) pH Controller; 115 VAC

LMI DP5000-1A-0 DP5000 Wall-Mount On/Off (Limit) pH Controller; 115 VAC
Zoom Image
Representative image only.
Add to Compare
LMI – Mfr # DP5000-1A-0 – Item # WW-57300-00
Pre-wired electrical plugs permit easy connections
  • Pulse-output modules feature three point proportinal control
  • Use with Flow and level switches
  • 2 year warranty
MORE +

PRODUCT OPTIONS

See All 4 Items in this Product Family

₹411,000.00INR / Each
Add To Cart
+ADD TO LIST

₹27,100.00 - ₹37,000.00INR / Each

for an additional
₹37,000.00INR / Each
for an additional
₹27,100.00INR / Each
Time to recalibrate? Click on the calibration service to view details, then order.
Cole-Parmer 500 PH 550 pH/Temperature 1/4-DIN Controller
Cole-Parmer 500 PH 550 pH/Temperature 1/4-DIN Controller
₹94,500.00INR / Each
Include Buffers Today!
Oakton® pH Buffer Solution Packs
Oakton® pH Buffer Solution Packs View All 3
₹4,300.00 - ₹44,700.00INR / Pkg of 3

SPECS & DESCRIPTION

Specifications & Description

  • Control TypeOn/Off
  • Display TypeLCD
  • Housing MaterialNEMA 4X
  • Min pH (pH)2
  • Max pH (pH)14
  • pH Resolution0.01
  • pH Accuracy±0.02 pH unit
  • Min Temperature (° C)0
  • Max Temperature (° C)70
  • Min Temperature (° F)32
  • Max Temperature (° F)158
  • Temperature Resolution0.1°
  • Temperature Accuracy±0.5°C
  • Temperature CompensationAutomatic
  • Password ProtectionYes
  • Dead Band0.0 to 14.0 pH units
  • Output Current4-20mA
  • Output Relay3 SPDT relays
  • Relay DelayProgrammable 0 to 2000 seconds
  • Power (VAC)115
  • Power (Hz)60
  • Width (cm)17.78
  • Height (cm)25.24
  • Width (in)7
  • Height (in)9 15/16
  • Depth (in)4 5/16
  • DescriptionDP5000 Wall-Mount On/Off (Limit) pH Controller; 115 VAC
  • Warranty2 year
Two year warrantyConformite Europeenne

Key Features

  • Pulse-output modules feature three point proportinal control
  • Use with Flow and level switches
  • 2 year warranty

More About this Item

Controllers with pulse output are compatible with 74501-, 07100-, and 74500-series pumps--no need for a separate timer to "translate" pulse signal.
