cover, micro USB cable, magnetic wall-mounting clip, and two 3.6 V lithium batteries. Models 23039-11 and 23039-13 include a temperature probe. Models 23039-06 and 23039-12 include two temperature probes.
Key Features
Ability to start, stop, graph trends, and summarize data in the field without computer connection
Memory capacity exceeds 250,000 readings per channel with resolution to the nearest 0.1 digit
Windows®-based control software available as free download
Compact and robust waterproof design with IP67 rating
Wall-mounting clip for quick magnetic mounting to a metallic surface
Dual-channel input; compatible with J, K, and T thermocouples
Logging rates between 1 second and 12 hours
Immediate, delayed, push-button or temperature-triggered start mode
Graphic LCD shows real-time readings, graph and current status
Stores over 250,000 readings per channel
Rugged and robust, IP67-rated construction
On-screen menu and graphing to start, stop, review and restart the logger in the field
Micro USB interface for PC based setup and data download
Highly visible confidence/alarm LEDs are user-programmable for volume
1 year warranty
More About this Item

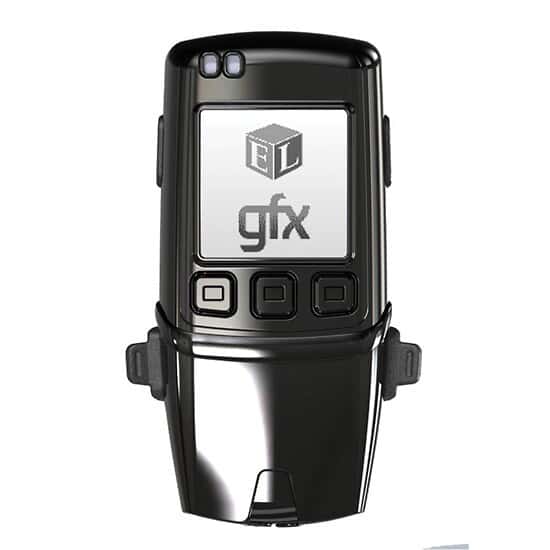

The EL-GFX-DTC stand-alone USB data logger measures and stores more than 250,000 temperature readings from two thermocouple inputs at a resolution of 0.1ºC. Using the Windows® control software, users can quickly set up the data logger and view downloaded data by connecting the device to the PC’s USB port using the supplied cable. The data logger features a high-contrast graphic LCD and three-input buttons which allows users to start, stop and restart the data logger using on-screen menus. This menu also provides real-time analysis of data either as a data summary (showing highest and lowest readings and alarm conditions) or as a graph that updates as new data is added. Multiple data logging sessions can be stored on the device ready for upload to a PC at a later date. The two replaceable 3.6 V lithium batteries typically allow logging for up to one year.
What's included: two thermocouple probes, USB cover, micro USB cable, magnetic wall-mounting clip, and two 3.6 V lithium batteries.
Specifications
Number of Channels2
Input TypeTemperature (thermocouple)
Temperature Resolution (° F)0.1 to 999.9, 1 above 999.9
Temperature Accuracy (° F)±0.9
Temperature Resolution (° C)0.1 to 999.9, 1 above 999.9
Temperature Accuracy (° C)±0.5
Max Thermocouple (° F)2462
Min Thermocouple (° F)-328
Max Thermocouple (° C)1350
Min Thermocouple (° C)-200
Sampling Rateonce per sec (min) to once per 12 hours (max)
Memory Size256,000 readings
System RequirementsWindows XP, Vista and 7 (including 64-bit operating systems). Note, the software is not compatible with Mac or Linux
ConnectionsMicro-USB
Battery Life1 year at 25°C and 10 min logging rate with no alarm LEDs or sounder and minimal LCD use
Battery Type2 lithium 1/2 AA (included)
Display TypeLCD
Length (in)4
Height (in)2
Width (in)1 1/4
Length (cm)10.2
Height (cm)4.9
Width (cm)3.1
DescriptionDual Channel Thermocouple Data Logger with Graphic LCD Screen
