Wireless controller holder, two USB cables (A to Micro B and Micro A to Micro B), two NW 12 fittings, screwdriver (for safety circuit), battery pack and power supply for wireless controller, and power cord set.
Key Features
Variable-speed high performance pressure/suction pump
Large display for easy setting and viewing of parameters
RS-232 and USB interfaces—connect to a PC to control the recirculating chillers
Feed hopper and bleed valve offer safe and clean handling of the thermofluid
Easy access air filter makes cleaning convenient
Safety features include low liquid level indicator and safety temperature set
Control remotely via wireless controller
Program 10 user-defined temperature ramp with 10 steps each
Excellent temperature stability of ±0.01°C
3 year warranty
More About this Item

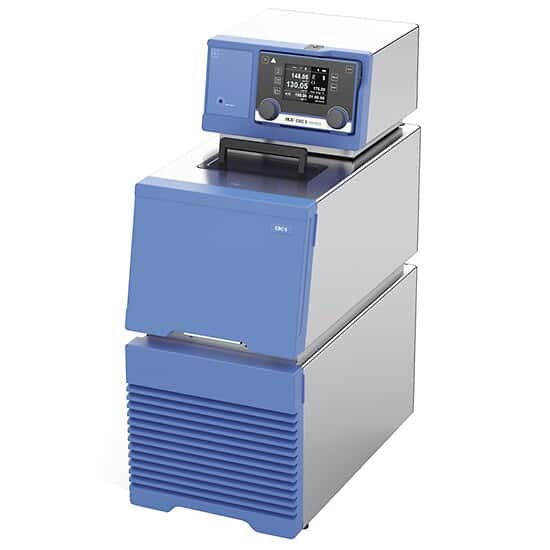

Use CRC 5 refrigerated/heating circulators for tempering double-walled reaction vessels, reaction systems, and autoclaves. With a wide temperature range of –25 to 200°C circulators can handle many applications in semi-conductor, packaging, and plastics industries. A built-in variable-speed pressure/suction pump offers powerful circulation yet operates at a quiet 55 dB(A) noise level.
PID temperature control provides excellent accuracy and stability to handle most demanding applications. Connect an external 100Ω Pt RTD temperature probe (order separately) to measure and control temperature directly in the working medium. High-quality insulation allows for fast heat-up times while reducing heat input at low temperatures. USB and RS-232 interfaces allow connection to a PC; control and monitor with the labworldsoft® laboratory software. Fluid level indicator turns LED segment red if the fluid level is too high or low.
CRC 5 control refrigerated/heating circulator features a wireless controller with Bluetooth® connection for convenient remote operation. Multifunction interface offers connections for magnetic valve, alarm contact, and standby contact.
Specifications
Bath TypeRefrigerated/Heating Circulator
Reservoir Capacity (L)7
Max Temperature (° C)200
Min Temperature (° C)–25
Temperature Accuracy (° C)±0.2
Temperature Stability (° C)±0.01
Cooling Capacity At -20° C (watts)80
Cooling Capacity At -10° C (watts)190
Cooling Capacity At 0° C (watts)270
Cooling Capacity At 10° C (watts)320
Cooling Capacity At 20° C (watts)350
Pump TypePressure/suction
RefrigerantR134a
Max Flow Rate (L/min)31
Max Pump Pressure (mbar)610
High-Temperature CutoffYes
Width (in)10 7/8
Height (in)27 3/16
Depth (in)19 5/16
Width (cm)27.5
Height (cm)69
Depth (cm)49
Heater Wattage (watts)1250
Temperature ControlPID
Temperature SettingKnob on wireless controller
Temperature SensorPT 100
Port ConnectionsM16
Drain ValveYes
InterfaceRS-232, USB, and multifunction interface
TimerYes
Display TypeTFT LCD
Wetted MaterialsStainless steel tubing and reservoir
Power (VAC)100 to 115
Power (Hz)50/60
DescriptionCBC 5 control Refrigerated/Heating Circulator with Wireless Controller, –25 to 200°C; 115V
