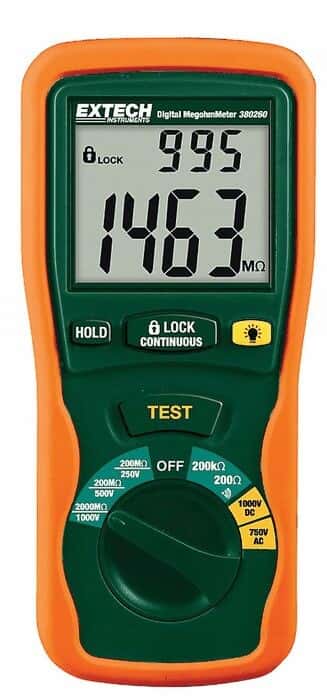

Extech 380260 1000 V Autoranging Digital Megohmmeter

Representative image only.
Extech Mfr # 380260 – Item # WW-27443-50
Test AC or DC motors, power tools or appliances
  • Lock power on function allows for hands free operation
  • Rugged design is ideal for harsh environments
  • 1 year warranty

₹68,100.00INR / Each

₹27,000.00 - ₹33,700.00INR / Each

for an additional
₹27,000.00INR / Each
for an additional
₹33,700.00INR / Each
Time to recalibrate? Click on the calibration service to view details, then order.

SPECS & DESCRIPTION

Specifications & Description

  • AC Voltage Accuracy±5% + 5 digits
  • Max Resistance (M ohms)2000
  • Resistance Resolution0.1MΩ
  • DisplayDigital
  • Battery Type (VAC)6 AA (included)
  • Height (in)7 51/64
  • Width (in)3 39/64
  • Depth (in)1 29/32
  • Description1000 V Autoranging Digital Megohmmeter
  • Warranty1 Year
1 Year Warranty

Key Features

  • Lock power on function allows for hands free operation
  • Rugged design is ideal for harsh environments
  • 1 year warranty

More About this Item

This autoranging digital megohmmeter provides three test ranges plus continuity and AC/DC voltage measurement. Unit features a test lock, data hold to freeze displayed readings, and low resistance functions as well as an easy to read backlit dual LCD display.
Meter measures insulation resistance to 2000 MΩ and includes over range indicator and automatic zero adjust. Auto discharge is activated after releasing the test button — discharging stored voltage automatically. To conserve battery life, meter automatically shuts off after fifteen minutes of non-use.
