Cole-Parmer 0 to 500 psig High-Accuracy Gauge Transmitter, 4 to 20 mA Output

Name: Cole-Parmer 0 to 500 psig High-Accuracy Gauge Transmitter, 4 to 20 mA Output
Brand: Cole-Parmer
SKU: 6807314
Price: 126000.00 INR
Availability: OutOfStock

Zoom Image

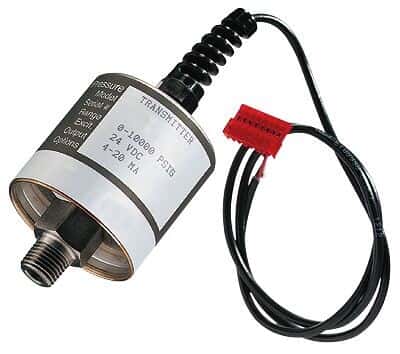

Representative image only.

Add to Compare

Cole-Parmer 0 to 500 psig High-Accuracy Gauge Transmitter, 4 to 20 mA Output

Cole-Parmer | Item: 6807314

Welded stainless steel (SS) housing rated to NEMA 4 (IP65) standards

18 month warranty ... READ MORE

₹126,000.00INR / Each

Add To Cart

+ADD TO LIST

PRODUCT OPTIONS

See All 6 Items in this Product Family

Include Calibration Services

InnoCal A2LA ISO17025 Accredited Calibration; Pressure/Vacuum Gauge, Accuracy ≤1%

for an additional

₹35,400.00INR / Each

InnoCal NIST-Traceable Calibration; Pressure/Vacuum Gauge, Accuracy ≤1%

for an additional

₹37,400.00INR / Each

Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

Product Description

Key Features

18 month warranty

More About this Item

Transducers feature SS capacitive sensor for your more demanding systems—even ElectroMagnetic Interference (EMI)/Radio Frequency Interference (RFI) resistance ensures accurate and consistent performance in any environment.

Transducers feature adjustable zero and span potentiometers. Transducers with 4 to 20 mA output have red (positive power) and black (output) wires. Transducers with 0.1 to 5.1 V output have red (positive power), green (output), and white/black (common) wires.

Specifications

Accuracy±0.13% full-scale
Min Pressure (PSI)0
Max Pressure (PSI)500
Min Temperature (° F)-40
Max Temperature (° F)260
Min Temperature (° C)-40
Max Temperature (DegreeC)126
Wetted Materials17-4PH SS
Process Connection1/4" NPT(M)
Unit Of Measurementpsi
Battery Type12 to 28 VDC (unregulated)
Electrical Connections2-ft (0.6-m) cable
Output4 to 20 mA
Enclosure RatingNEMA 4, IP65
HousingStainless Steel
Media CompatibilityGases and liquids compatible with wetted materials
Diameter (in)2
Length (in)5
Length (cm)12.7
Diameter (cm)5.1
Description0 to 500 psig High-Accuracy Gauge Transmitter, 4 to 20 mA Output
Warranty18 months
